Stainless Steel Tree Grills

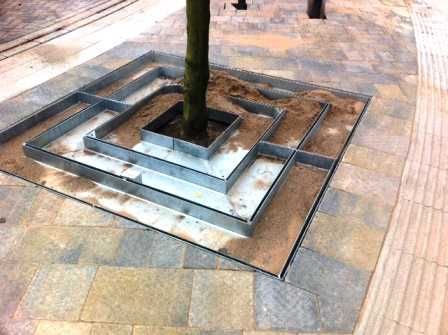

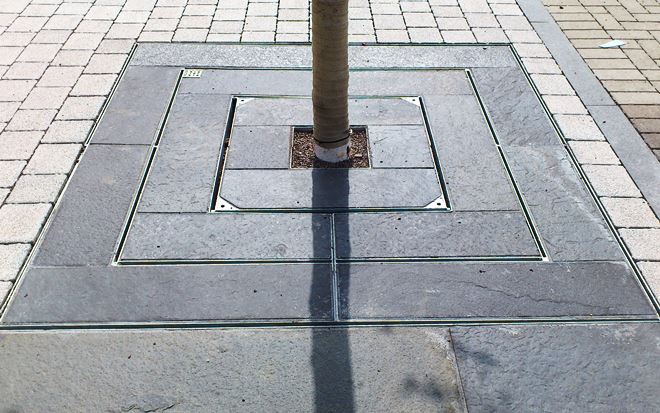

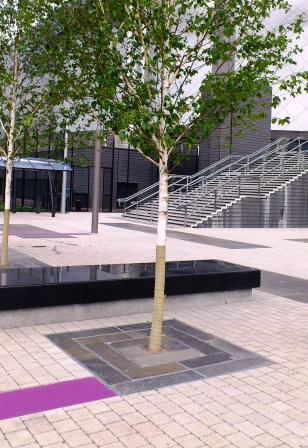

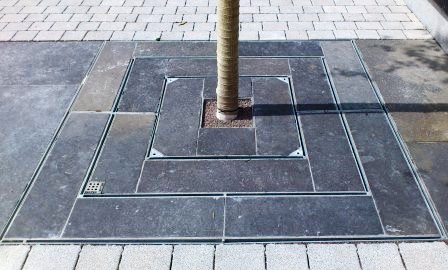

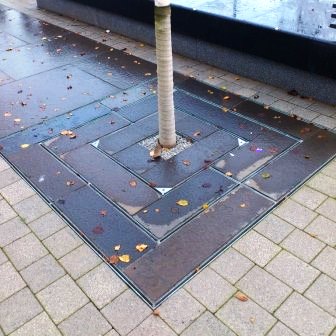

Ref 8000ss Stainless Steel Recessed Tree Grill

Design: Matthew McMullen

Dimensions - 1000mm sq, 1200mm sq, 1400mm sq, 1500mm sq, 1800mm sq & 2000mm sq c/w standard 450 or 600mm square centre to suit rows  (can be made to suit requirements)
Tray Depths - 75, 90, 105 & 125mm (as standard, can be made to suit requirements)
Tray Widths - to suit infill paving

Materials Available
Grade 316 stainless steel

Finish
Mill with satin edges

Supplied With
Locking lugs for anti vandal protection
DDA compliant slots
Slotted holes in frame for fixing
2 part lid
Load class A15

Options

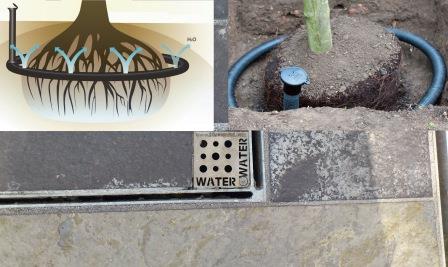

Aperture for uplighter or irrigation system
Grade 304 stainless steel
Removable centre tray for trunk growth
Concrete ties
Load class B125, C250 or D400


Custom
Blueton can manufacture to clients design or specification
