Mild Steel Tree Grills

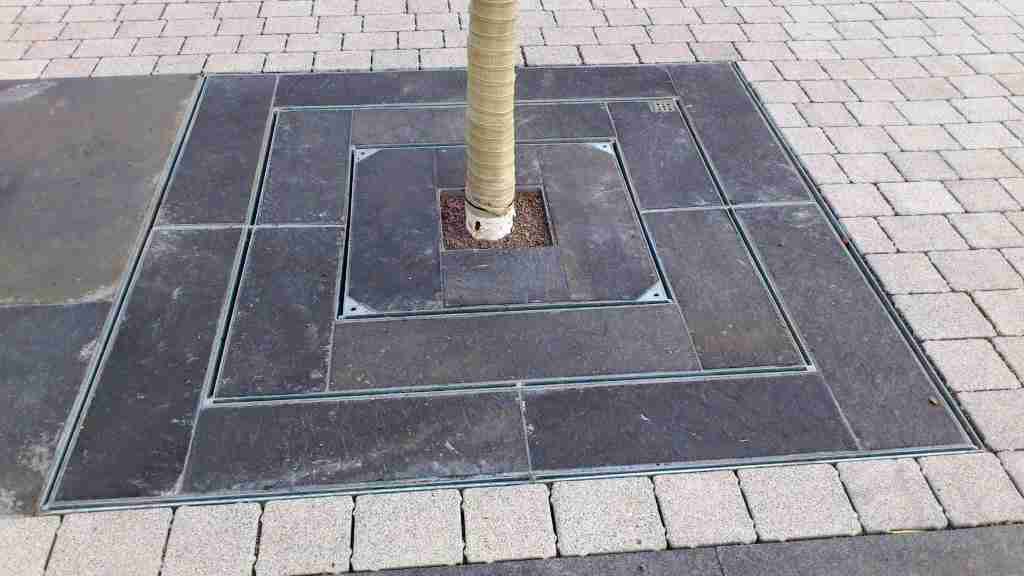

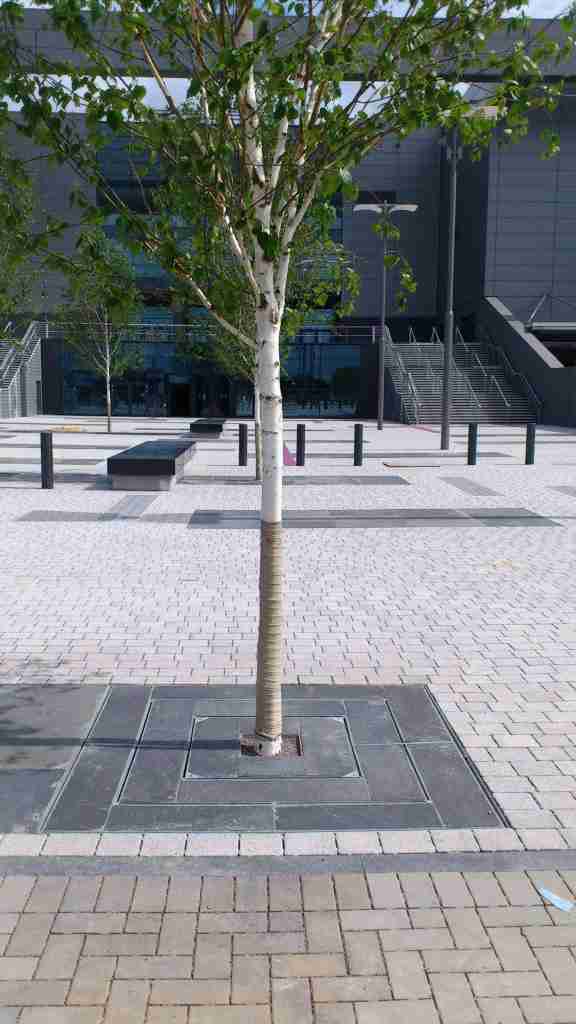

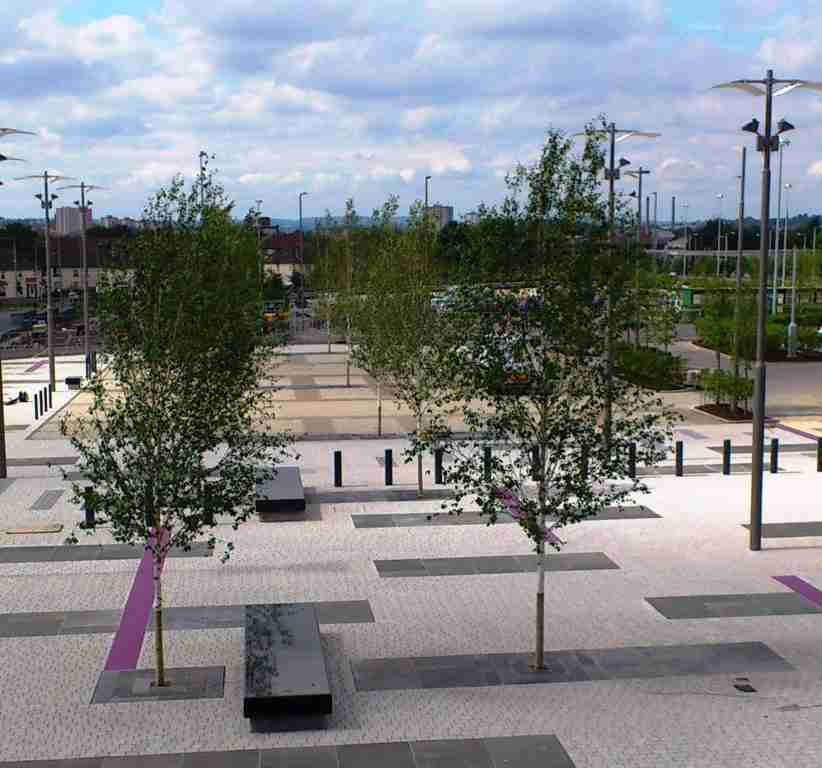

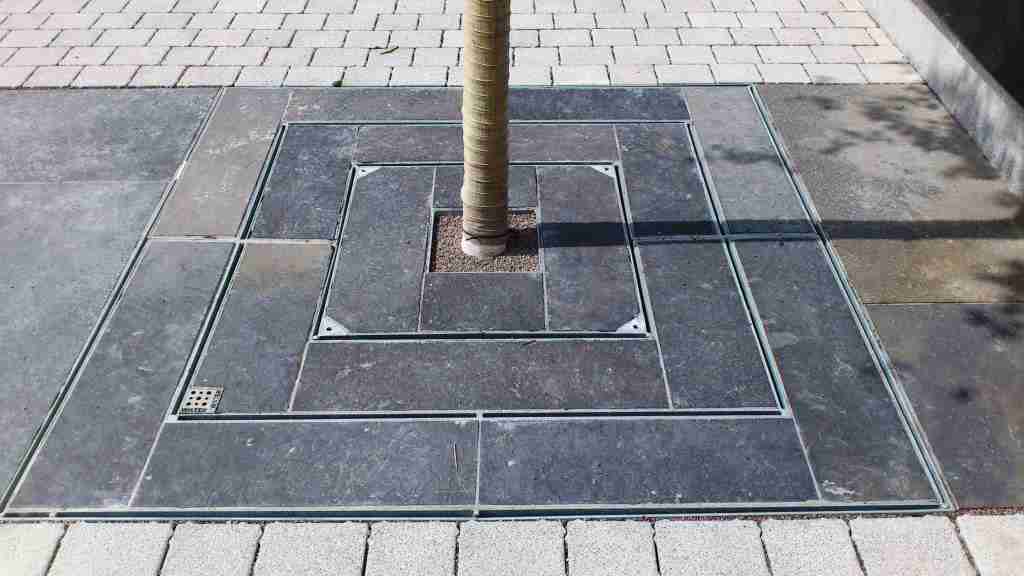

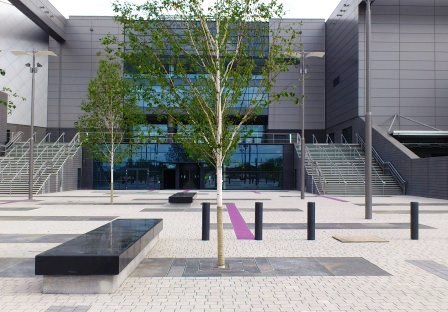

Commonwealth Games, NISA Velodrome, Glasgow (2000mm sq)

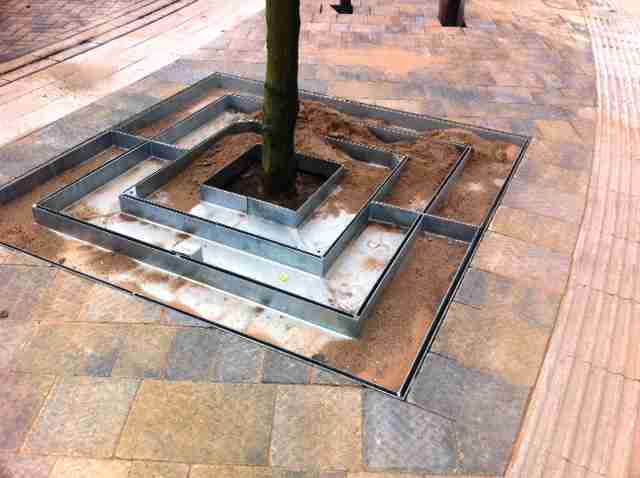

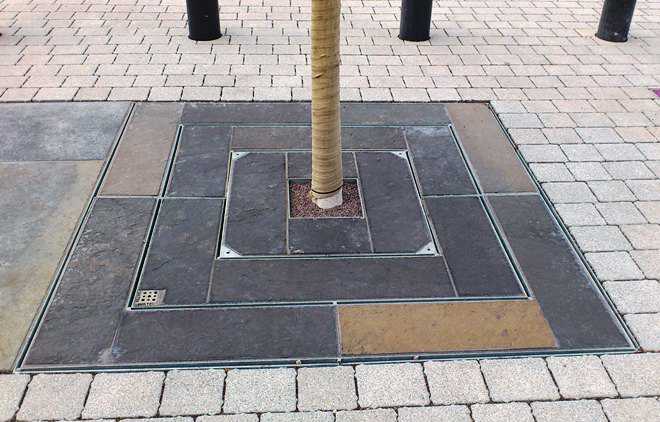

Ref 8000 Recessed Tree Grill

Design: Matthew McMullen

Dimensions - 1000mm sq, 1200mm sq, 1400mm sq, 1500mm sq, 1800mm sq & 2000mm sq c/w standard 450 or 600mm square centre to suit rows  (can be made to suit requirements)
Tray Depths - 75, 90, 105 & 125mm (as standard, can be made to suit requirements)
Tray Widths - to suit infill paving

Materials Available
Mild steel

Finish
Hot dipped galvanised to BS EN ISO 1461:2009 (95 galv)

Supplied With
Locking lugs for anti vandal protection
DDA compliant slots
Slotted holes in frame for fixing
2 part lid
Load class A15

Options
Aperture for uplighter or irrigation system (inset)
Grade 304 or 316 stainless steel
140 Galv heavy duty coating

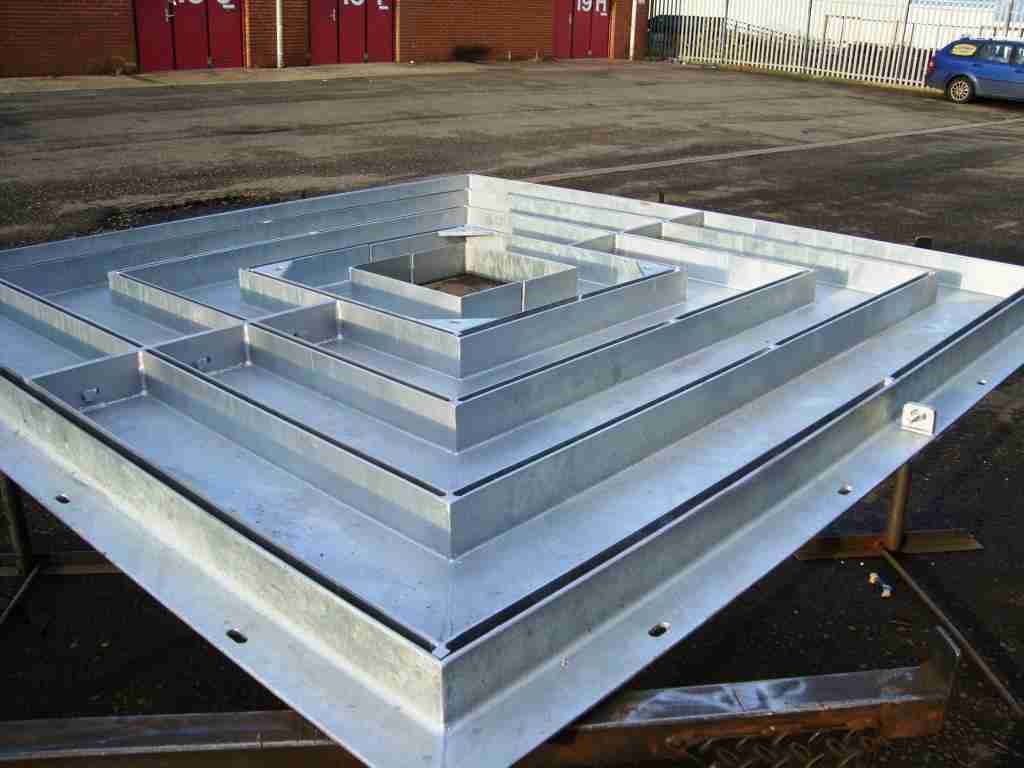

Removable centre tray for trunk growth
Concrete ties
Load class B125, C250 or D400
Powder coated finish

Custom
Blueton can manufacture to clients design or specification
