canopies & walkways

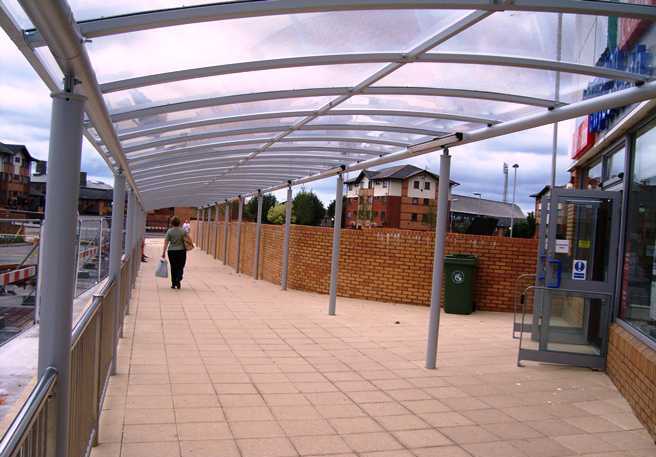

                                            Shown 65mts long open backed with s/steel pedestrian panel infill to front.

Ref 4304 Pedestrian Walkway

Dimensions
3500mm wide x 2500mm high rising to 3000mm at rear x 4100mm long (standard unit) but can be any multiples of 1000mm long (other sizes available on request)

Materials Available
Mild steel

Finish
Hot dipped galvanised to BS EN ISO 1461:2009

Supplied With
Clear PETG Glazed roof
Anti tamper nuts & bolts
500mm extended root for submerged fixing (other depths available on request)

Options
Powder coated (to any RAL number)
Surface mounted base plates
Internal solar or mains lighting
Pedestrian guardrail infill panels
Glazed side panels
Perch seating
Installation service

Custom
Blueton can manufacture to clients design or specification
